High Efficiency UPS Power Inverter Pure Sine wave Output

Name: High Efficiency UPS Power Inverter Pure Sine wave Output
Brand: SOROTEC
Price: 1 USD

China High Efficiency UPS Power Inverter Pure Sine wave Output wholesale

Place of Origin : China

Brand Name : SOROTEC

Certification : CE,ROHS,ISO9000,ISO14000

Model Number : IG3117C 3000 - 5000VA

MOQ : 10 pieces

Packaging Details : Standard Exported Cartons and Pallets

Delivery Time : Within 15-30days after receiving your 30% TT deposit

Payment Terms : 30% TT in advance, the balance before shipping

Supply Ability : 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS

Phase : Single Phase

Protection : Overvoltage

Weight : 5 - 13.5kg

Output Voltage : 200/220/230/240V

Type : On-line

Application : household appliances

Color : black

Nominal Voltage : 48VDC;110VDC;220VDC

Operating range : - 18% ~+25%

Voltage range : - 25% ~ +20%

Wave form : Pure sine wave

Norminal output voltage : 110/120VAC, 220/230/240VAC

Output frequency : 50/60Hz ± 0.1%

Operating Temperature : - 10 ~50℃

Storage Temperature : - 40 ~85 ℃ ℃

Contact Now

High Efficiency UPS Power Inverter Pure Sinewave Output

Key Features:

1.High frequency switching technology for compact size and light weight

2.Pure sinewave output

3. High efficient DC to AC conversion minimizing energy loss

4. Supporting home appliance/ office equipments/ Lighting Equipments / Moto-Based Equipment

5. Solar. wind. hydro, Generator

IG3117C Series Technical Specifications:

MODEL

invermax 5kva

Input Voltage Waveform

Sinusoidal (utility or generator)

Rated Output Power

5000VA/4200W

Nominal Input Voltage

230Vac

Input Voltage Range

170Vac to 280Vac (Normal); 90Vac to 280Vac (generator/Wide range)

Max AC Input Voltage

300Vac rms

Nominal Input Frequency

50Hz / 60Hz (Auto detection)

Efficiency (Line Mode)

>95%

Transfer Switch Rating

40A

Transfer Time (AC to DC)

10ms (typical) 20ms (typical)

Transfer Time (DC to AC)

10ms (typical) 20ms (typical)

Inverter Mode Specification:

MODEL	InverMax 5kva
Output Voltage Waveform	Pure Sine Wave
Power Factor	0.84
Nominal Output Voltage(V)	230Vac
Output Frequency(Hz)	50Hz / 60Hz ± 1Hz
Output Voltage Regulation	±10% rms
Nominal Efficiency	>90%
Over-Load Protection	fault after 5s@≥150% load; fault after 10s@110%~150% load
Surge rating	10000VA
Capable of starting electric motor	2.5HP
Output Short Circuit Protection	Current limit (Fault after 4 cycles max)

Charger Mode Specification:

MODEL	InverMax 5kva
Nominal Input Voltage	230Vac
Input Voltage Range	180V~ 270Vac(Normal range); 100V~ 270Vac(generator/wide range)
Nominal Output Voltage	According to the battery type
Nominal Charge Current	20A(95-175v,gen/wide,only); 35A(175-275v)@35A setting; 20A(175v-275v)@20A setting)
Charge Algorithm	Boost CC (constant current stage) → Boost CV (constant voltage stage) →Float (constant voltage stage)
Battery Type Setting	Flooded, AGM/Gel

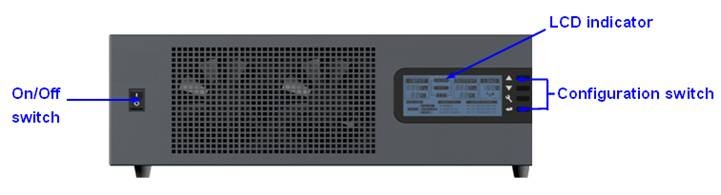

High Efficiency 95% Pure Sine Wave Solar Inverter There are one LCD and one Power Switch on front panel.

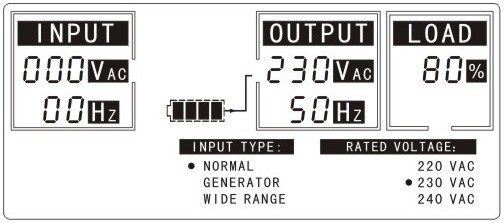

Front panel display:

High Efficiency UPS Power Inverter Pure Sine wave Output

Our Service

1. Samples

Samples are Available for Testing and Market Test.

2. Warranty of Soropower Products

Soropower provides warranty against defects in materials and workmanship for its Uninterruptible power supply,Power inverter/chargers including inverter12v 24v 48V, Solar charge controllers (“Product”).

3. Guides and After-service Consultancy

Soropower Team will offer these guides below.

A. Need an Accessory?

B. Products Repair?

C. Power Problems to Solve?

D. Power Protection Solutions, etc.?

24 Hours After service consultancy just for you and to make your problems to solve easily. High Efficiency UPS Power Inverter Pure Sine wave Output

High Efficiency UPS Power Inverter Pure Sine wave Output
